If you’ve ever tried to level a large patch of dirt with a hand rake and a wheelbarrow, you know it’s a recipe for a sore back and a “wavy” finish.

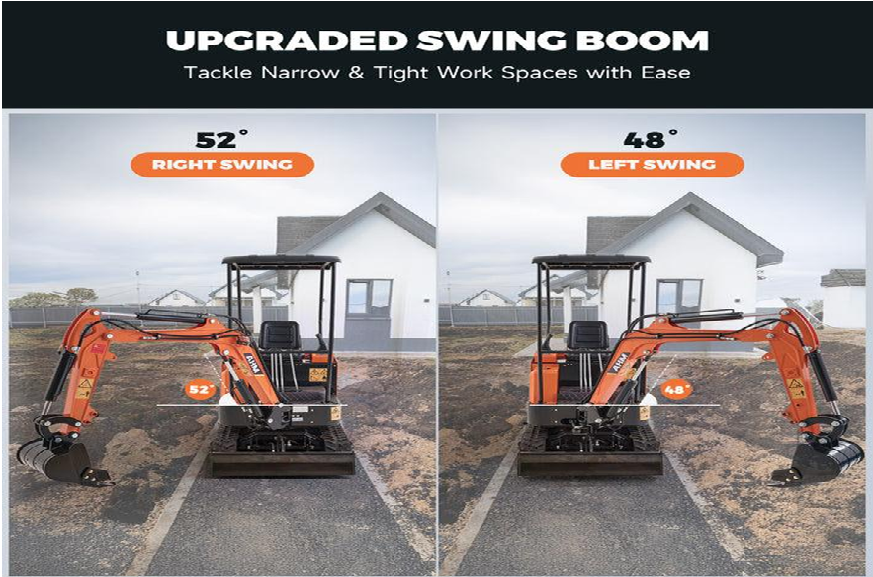

When you step into the cab of an AHM AX-series mini excavator, you have all the power you need to flatten ground like a pro. However, grading and leveling is an art form. If you just mash the levers, you’ll end up with a landscape that looks like a motocross track.

At AHM, we want your first project to look like a professional did it. Here is the beginner’s guide to mastering the grading process using your mini excavator.

Read More: Pay Attention to These Dashboard Warning Indicators

Step 1: The Secret Weapon (The Dozer Blade)

Many beginners forget that their AHM excavator has two ends. The front blade isn’t just for stabilization; it’s your best friend for rough grading.

  • The Technique: Drop your blade so it sits just a fraction of an inch above your target level. Drive forward to push the high spots into the low spots.
  • Pro-Tip: Don’t try to move massive mountains of dirt all at once. Take thin, sweeping cuts. If the tracks start to spin or lift, your blade is too deep.

Step 2: The “Pull and Feast” Method (Using the Bucket)

Once the ground is roughly flat, it’s time to switch to the bucket for precision leveling.

  • The Setup: Rest the flat bottom of the bucket on the ground, keeping the teeth or cutting edge slightly angled upward (about 5 to 10 degrees). If the teeth are pointed straight down, you’ll dig a hole; if they are pointed too far up, you’ll just roll over the dirt.
  • The Motion: Extend the boom out, drop the bucket to the dirt, and pull the arm back toward the machine while simultaneously lifting the boom slightly to keep the bucket perfectly flat. It takes a little practice to sync your hands, but it creates a flawless, smooth path.

Step 3: The “Heel Flip” (Back-Dragging)

This is the ultimate finisher trick that separate the rookies from the pros.

  • The Technique: Extend your boom over the area you just worked. Curl your bucket completely under so the backside (the “heel”) is resting on the dirt.
  • The Motion: Put your controls into “float” mode (or gently apply downward pressure) and reverse the machine while dragging the heel of the bucket along the ground. This acts like a giant iron iron, erasing your track marks and packing the loose soil down perfectly.

Read More: Ignition Coils: What You Need to Know

3 Golden Rules for Beginner Graders

  1. Watch Your Drainage: Water always wins. Never level a yard perfectly flat if it sits next to a building. Always ensure the ground slopes away from foundations at a rate of at least 6 inches of drop for every 10 feet of distance.
  2. Work in Sections: Don’t try to grade a whole half-acre at once. Break the yard into 10×10 foot grids. Perfect one grid, then use it as your visual guide to bring the next grid up to match.
  3. Keep the Tracks Clean: If a big chunk of rock or mud gets stuck under one of your rubber tracks, the machine will tilt. If the machine tilts, your grade will be crooked. Keep an eye on your chassis!

Quick Grading Cheat Sheet

Action Bucket Position Best For
Rough Cuts Teeth down at 45° Stripping sod, digging out high clay hills.
Smoothing Flat bottom, teeth slightly up Spreading topsoil or gravel evenly.
Finishing Backside/Heel pressing down Erasing track marks, packing down a shed pad.

Practice Makes Perfect

Don’t worry if your first 20 minutes look a bit choppy. Grab your AHM machine, find a low-stakes pile of dirt in the back of your property, and spend some time getting a feel for how the hydraulics respond to your touch. Within an hour, you’ll be pulling smooth grades like an operator with twenty years of experience.
